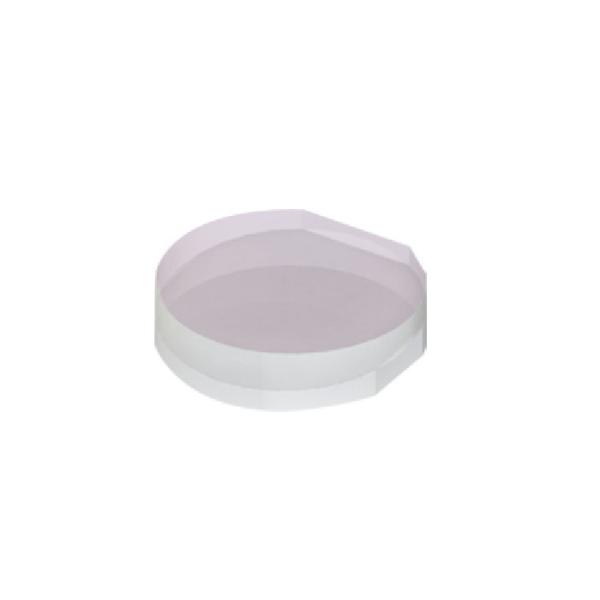

Optical Lyot Depolarizer 20Hz For Monochromatic Broadband Light

Brand Name : STAR OPTIC

Model Number : QLD

Certification : RoHS, ISO9001

Place of Origin : Wuhan, China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 50000pcs/Month

Delivery Time : Negotiable

Packaging Details : Safe and dust-free packing

Product Name : Quartz Lyot Depolarizer

Constructure : two crystal quartz wedges

Optical axis : alone the wedge plane

Orientation angle between two axes : 45°

Sides : uncoated

Advantage : deal For >6mm Diameter Monochromatic Light & Broadband Light

Contact Now

Quartz Lyot Depolarizer, Ideal For >6mm Diameter Monochromatic Light & Broadband Light

Overview:

Quartz Lyot Depolarizer is used to convert a polarized incoming monochromatic light beam into a pseudo-random polarized beam. Incoming light beam with broadband source will also be converted by the depolarizer that varies spatially and wavelength. Quartz Lyot Depolarizer is constructed of two crystal quartz wedges. The optical axis of each wedge is along the plane, whereas the orientation angle between the two wedges is 45°. This depolarizer is unique as there is not requirement in orienting the axes of the depolarizer, and is useful if the initial polarization state of incoming light is unknown.

These quartz lyot depolarizers are ideal for greater than 6mm diameter Monochromatic Light & Broadband Light. We offer these quarts lyot depolarizers with technique of epoxy cemented and optically contacted.

General Specifications of Quartz Lyot epolarizer:

Material Quartz+Quartz
Dimension Tolerance +0/-0.2mm
Thickness Tolerance ±0.2mm
Surface Quality 60/40
Clear Aperture >90% central
Flatness <λ/8@632.8nm
Parallelism <1 arc minute
Beam Deviation <3 arc minutes
Coating Uncoated
Damage Threshold Cemented: >500mJ/cm2, 20ns, 20Hz @1064nm
Optically contacted: >5J/cm2, 20ns, 20Hz @1064nm

Optical Lyot Depolarizer 20Hz For Monochromatic Broadband Light

Standard Products of Quartz Lyot Depolarizer:

Part Number

Type

Dimension

(mm)

 Thickness
(mm)

Wavelength

(nm)
QLD-C-2507-400-2500 Cemented 25.4 7.5 400-2500
QLD-O-2507-220-2500 Optically Contacted 25.4 7.5 220-2500
